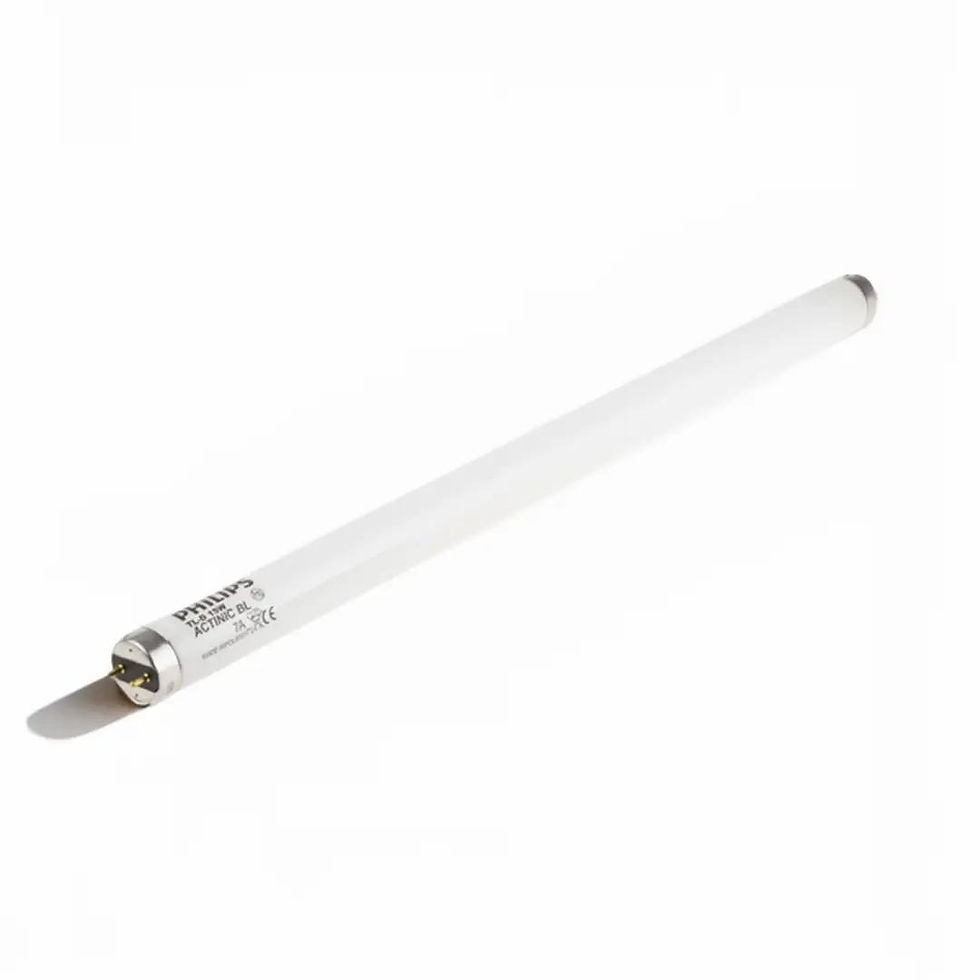

PHILIPS ACTINIC BL BLACK LIGHT TL-D 15W/10 1.5FEET UVA INSECT TRAP TUBE 928024801029
With an optimized spectrum matching the eye sensitivity of the housefly, Actinic BL TL(-K)/TL-D(-K)/TL-E/PL-S and PL-L lamps are perfect for attracting insects. They have virtually no UV-B output, and so are perfectly safe. What's more, with the lowest mercury content in the industry and being 100% lead-free, these lamps represent a very good environmental choice. Furthermore, the availability of a wide range of form factors (straight (T5, T8, T12), circular (TL-E) and compact (PL-S/PL-L)) and wattages enables you to make all kinds of designs for your electronic fly killers.
Technical Specifications
Cap-Base: G13 (Medium Bi-Pin Fluorescent)
Main Application: Insect traps
Life to 50% Failures (Nom): 8000 h
Useful Life (Nom): 5000 h
Power (Nom): 15 W
Lamp Current (Nom): 0.34 A
Voltage (Nom): 55 V
Color Code: 10
Color Designation: Actinic
Chromaticity Coordinate X (Nom): 222
Chromaticity Coordinate Y (Nom): 210
UV Depreciation at 2000 h: 10 %
UV Depreciation at 5000 h: 15 %
UV Depreciation at 8000 h: 20 %
UV-A Radiation 100Hr (IEC): 3.5 W
UV-B/UV-A (IEC): 0.2 %
Mercury (Hg) Content (Nom): 5.0 mg
Net Weight (Piece): 56.570 g
Dimensional Data
Product | D (max) | A (max) | B (max) | B (min) | C (max) |
---|---|---|---|---|---|
Actinic BL TL-D 15W/10 1SL/25 | 28 mm | 437.4 mm | 444.5 mm | 442.1 mm | 451.6 mm |
Photometric Data
Spectral Power Distribution:
Black and white: Emission predominantly in the UV-A range (350-400 nm).
Color spectrum: Peak wavelength concentration in the UV-A region.
Warnings and Safety
Health Safety: A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks:
Ventilate the room for 30 minutes.
Collect the parts, preferably with gloves, and seal them in a plastic bag.
Take the sealed bag to your local waste facility for recycling.
Do not use a vacuum cleaner.
PHILIPS ACTINIC BL BLACK LIGHT TL-D 15W/10 INSECT TRAP TUBE 928024801029
Cap-Base: G13 (Medium Bi-Pin Fluorescent)
Main Application: Insect traps
Life to 50% Failures (Nom): 8000 h
Useful Life (Nom): 5000 h
Power (Nom): 15 W
Lamp Current (Nom): 0.34 A
Voltage (Nom): 55 V
Color Code: 10
Color Designation: Actinic
Chromaticity Coordinate X (Nom): 222
Chromaticity Coordinate Y (Nom): 210
UV Depreciation at 2000 h: 10 %
UV Depreciation at 5000 h: 15 %
UV Depreciation at 8000 h: 20 %
UV-A Radiation 100Hr (IEC): 3.5 W
UV-B/UV-A (IEC): 0.2 %
Mercury (Hg) Content (Nom): 5.0 mg
Net Weight (Piece): 56.570 g
